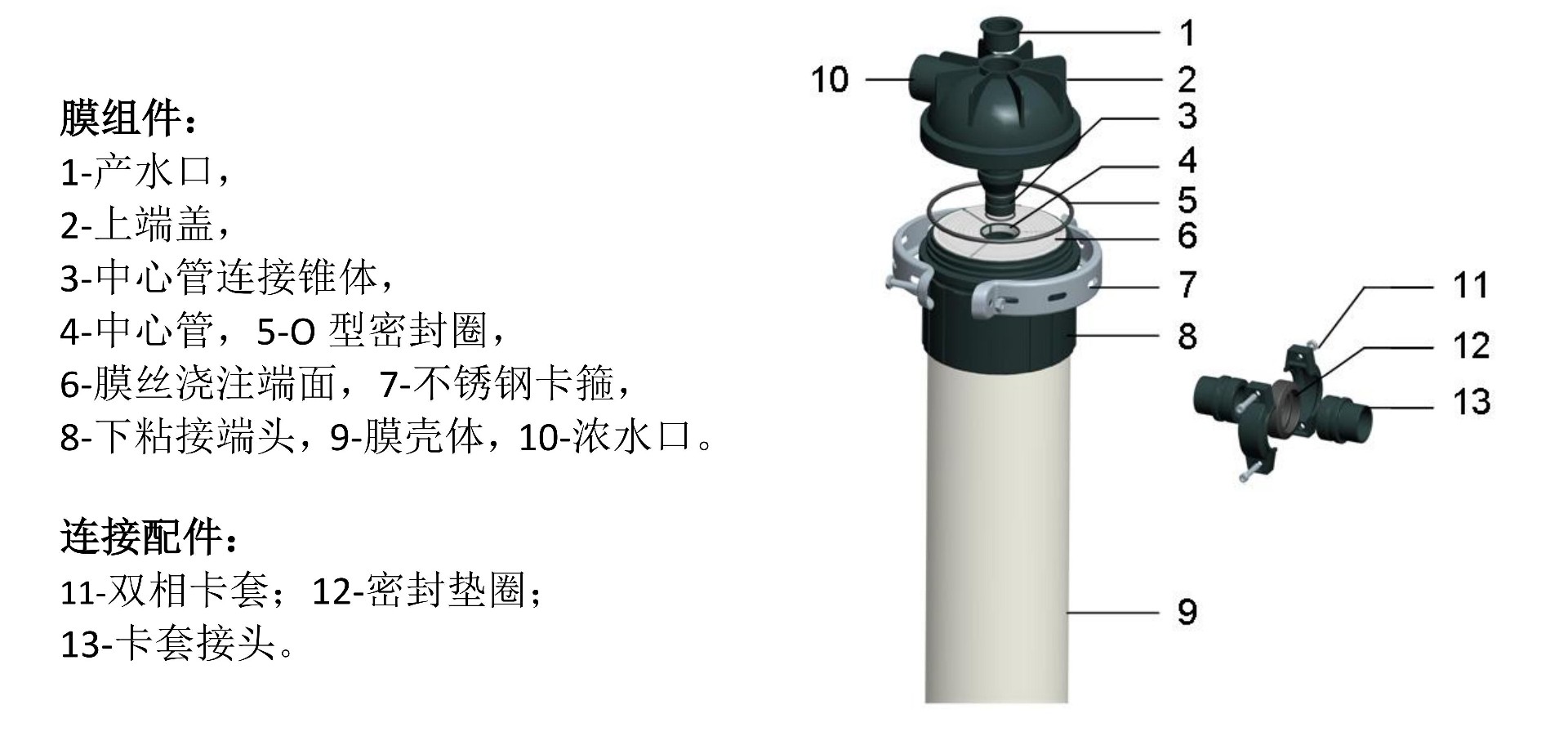

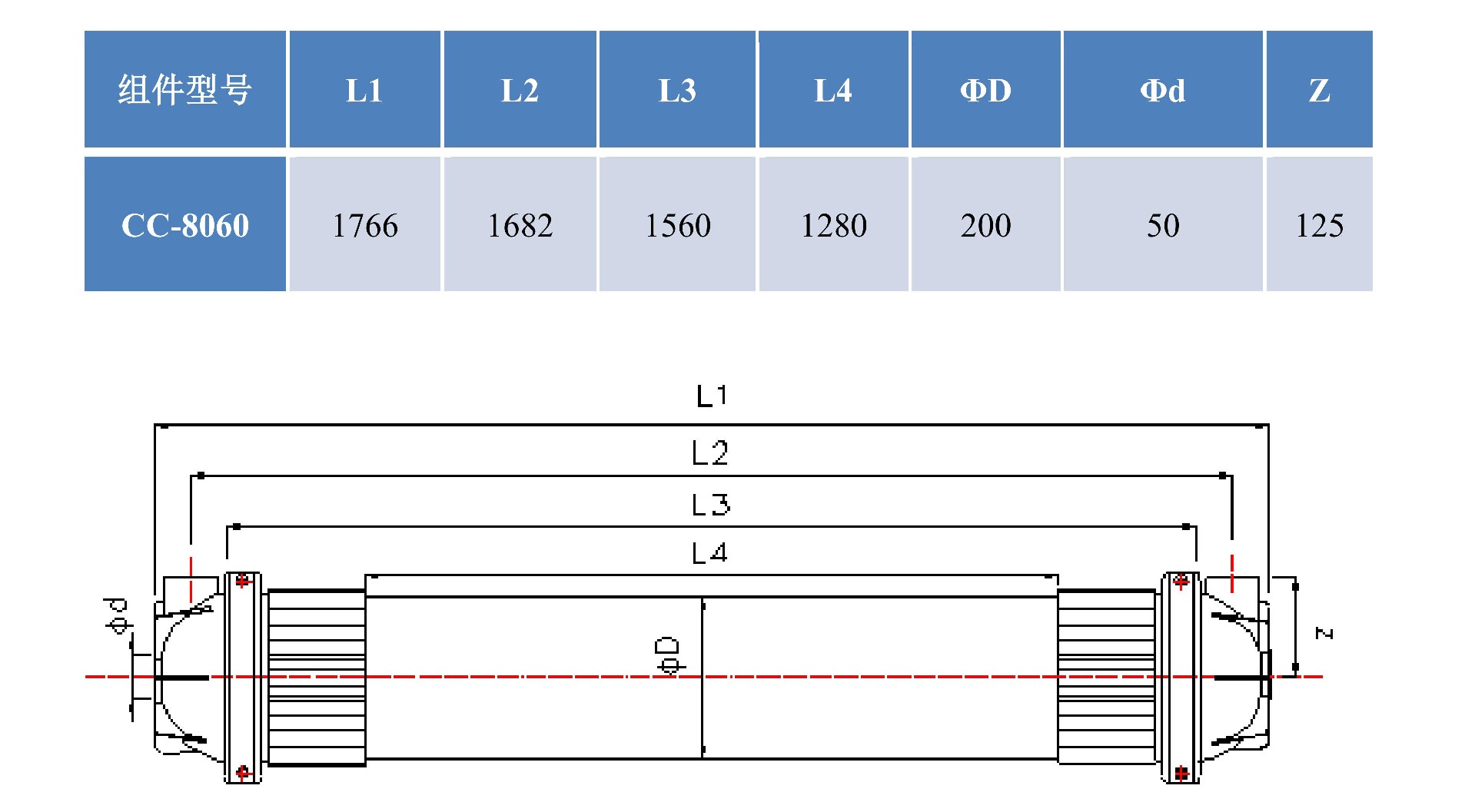

1.Structure of CC-UEI8060 PES Ultrafiltration （uf）Membrane Module

2.Basic Performance Parameters of CC-UEI8060 PES Ultrafiltration （uf）Membrane Module

Model: UEI 8060

Membrane Material: PES (Polyethersulfone)

Membrane Pore Size (3 Specifications): 0.03/0.05/0.1 μm

Inner/Outer Diameter of Hollow Fiber: 1.0 mm/1.5 mm

Operation Mode: Internal Pressure Membrane, Full-Flow or Cross-Flow Filtration

Shell Material: UPVC

Effective Area: Inner Surface: 35 m², Outer Surface: 52.5 m²

3.Application Fields of Hollow Fiber Polyethersulfone PES Ultrafiltration （uf）Membrane

Concentration and Extraction of Materials, and Purification of Drinking Water. Specific Applications Include:

➢ Separation of Pharmaceutical Proteins and Cells

➢ Removal of Bacteria and Endotoxins

➢ Refinement of Juice Beverages and Clarification of Wine

➢ Pure Water Industry: From Large-Scale Water Plants to Household Water Purifier Filter Cartridges

➢ Biological Fermentation Industry and Food Fermentation Industry

➢ Chemical Industry Material Separation, Such as Concentration and Purification of Acrylamide
